The Platform supports connecting AI agents built on external platforms through a Proxy Agent Architecture. Rather than rebuilding existing agents, you register them as proxy agents that relay communication between the Platform and the external agent — handling protocol translation while preserving the performance, security, and integrity of your existing setup.

​
Before You Begin

  • External agents must conform to the Agent Protocol. The Platform sends requests and expects responses in a defined structure. If your external agent uses a different format, build an adapter layer first. See Handling Format Variations.

​
Step 1: Set Up the Agent Profile

​
Name

Choose a unique name that reflects the external agent’s function and makes it clearly identifiable alongside native agents.

​
Description

Write a description that tells the orchestrator when to route requests to this agent. Be specific about the agent’s responsibilities and how it differs from others in the application.

​
External Platform

Enter the name of the external platform this agent connects to (for example, LangGraph, Vertex AI Agent Builder, or a custom service). This acts as an identifier for the external agent.

​
Avatar

Select an avatar from the available list. External agents appear alongside native agents in the user interface.

​
Step 2: Configure the Agent Definition

The agent definition section specifies how the proxy agent communicates with the external agent.

​
Request Definition

Define the complete API call structure the proxy agent will use to reach the external agent:
FieldDescription
HTTP MethodThe HTTP method for the request (GET, POST, PUT, DELETE)
URLThe full endpoint URL of the external agent
Request HeadersKey-value pairs for authorization and context
Request BodyPayload structure for POST or PUT requests — see Request Format
ResponseDisplays the API response when you run a test
Click Test to send a sample request to the external agent and verify the connection and response format.

​
Asynchronous Integration

Enable this option if the external agent returns responses asynchronously. When enabled, the proxy agent exposes a callback URL that the external agent uses to deliver its response.

​
Timeout

Set the maximum duration (in seconds) the proxy agent will wait for a response. If no response is received within this period, the request fails with a timeout error.

​
Route Response to User

When enabled, the external agent’s response is delivered directly to the user, bypassing the supervisor. Use this when:
  • Real-time responsiveness is a priority
  • The external agent is fully trusted to handle queries independently
  • Responses should be delivered as-is, without modification or enrichment

​
Step 3: Configure Delegation

Applies to: Apps using the Adaptive Network orchestration pattern only. Add delegation rules to define how this agent routes tasks to other agents in the application. See Network Orchestration for details.

​
Review and Create

Review all configuration settings, then click Create to register the external agent as a proxy agent in your application.

​
Request and Response Formats

The proxy agent communicates with external agents using a defined structure. Your external agent must accept requests and return responses in the formats described below.

​
Request Format

The proxy agent sends requests to the external agent in the following structure:
{
  "sessionIdentity": [
    {
      "type": "sessionReference",
      "value": "string"
    },
    {
      "type": "userReference",
      "value": "string"
    }
  ],
  "input": [
    {
      "type": "text",
      "content": "User Input"
    }
  ],
  "debug": {
    "enable": "string",
    "debugMode": "string"
  },
  "stream": {
    "enable": "string",
    "streamMode": "string"
  }
}
FieldRequiredDescription
sessionIdentityYesMaintains session continuity across conversation turns
inputYesThe user’s input passed to the external agent
debugNoEnables debug mode. Set enable to true and debugMode to "thoughts"
streamNoEnables response streaming. Set streamMode to "token" or "messages" (only messages is currently supported)
metadataNoPasses metadata into sessionMeta memory for the duration of the session
See the full field reference in Execute API.

​
Response Format

The external agent must return responses in the following structure:
{
  "messageId": "msg-123",
  "output": [
    {
      "type": "text",
      "content": "Final answer"
    }
  ],
  "debug": [
    {
      "type": "thought",
      "content": "Analyzing the query..."
    },
    {
      "type": "thought",
      "content": "Processing data..."
    }
  ],
  "sessionInfo": {
    "status": "idle | busy | error",
    "conversationState": "COMPLETED | ACTIVE | ERROR",
    "userReference": "string",
    "sessionReference": "string",
    "userId": "string",
    "sessionId": "string",
    "runId": "string",
    "appId": "string",
    "output": {
      "type": "text | image | file | audio",
      "content": "string"
    }
  }
}
FieldDescription
outputThe response content from the external agent
debugDebug information, included when debug mode is enabled
sessionInfoSession state and metadata. When streaming, partial output events are sent first; the complete stitched output is then sent as a single unit under sessionInfo

​
Handling Format Variations

If your external agent does not follow the expected request or response format, create an adapter service between the Platform and your external agent:
  1. Build an adapter that accepts the platform’s request structure
  2. Convert the request to the format your external agent expects
  3. Reformat the external agent’s response to match the platform’s response structure

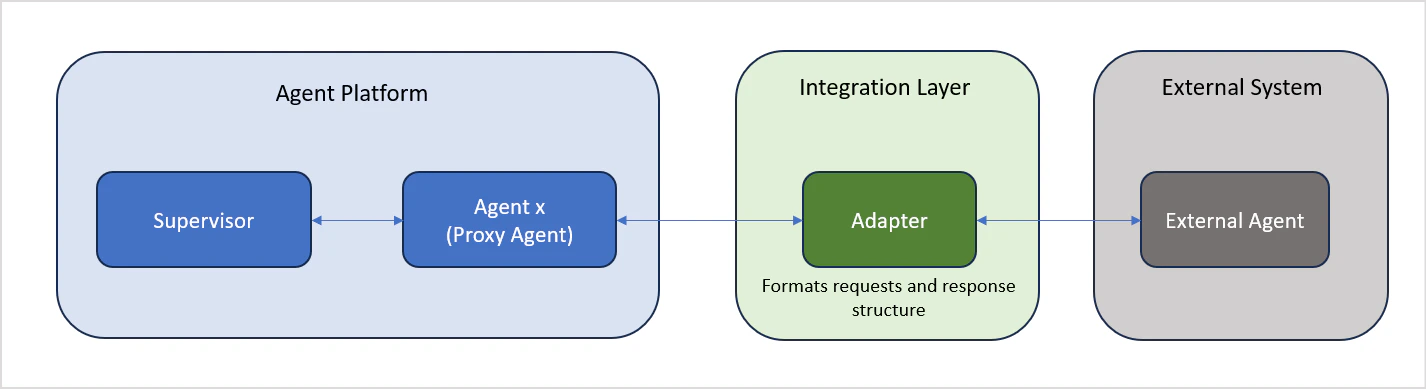

Adapter architecture

​
Key Characteristics

FeatureDescription
Secure communicationEncrypted data exchange between the proxy and external agent
Protocol translationAutomatic conversion between Platform and external formats
Timeout managementAutomatic handling of communication failures and timeouts
Unified interfaceExternal agents appear alongside native agents in the UI
Status visibilityClear visual indicator of the external agent’s connection status
